Ultrasonic cutting machine - UCM 600 Basic

Robust continuous machine for industrial use

High time savings in production
Gentle cutting of products
Precise cutting results
Consistent quality of the cut product
Fast product changeover
Clear program management
Highest hygiene standards
Easy maintenance
Durability
User-friendly
Can be integrated into production lines

Usage

The UCM 600 Basic ultrasonic cutting machine was developed as a continuous machine for industrial use. With the cutting machine we support the central production in the bakery and confectionery industry as well as in the food processing industry.

This ultrasonic cutting machine is available with several options to meet your individual needs and requirements during production.

The following product sizes can be realized:

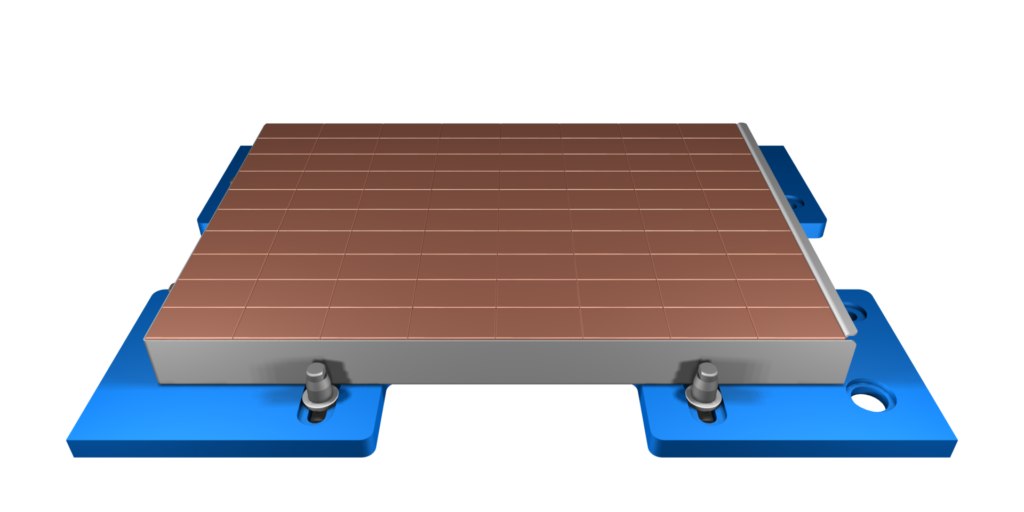

Baking trays

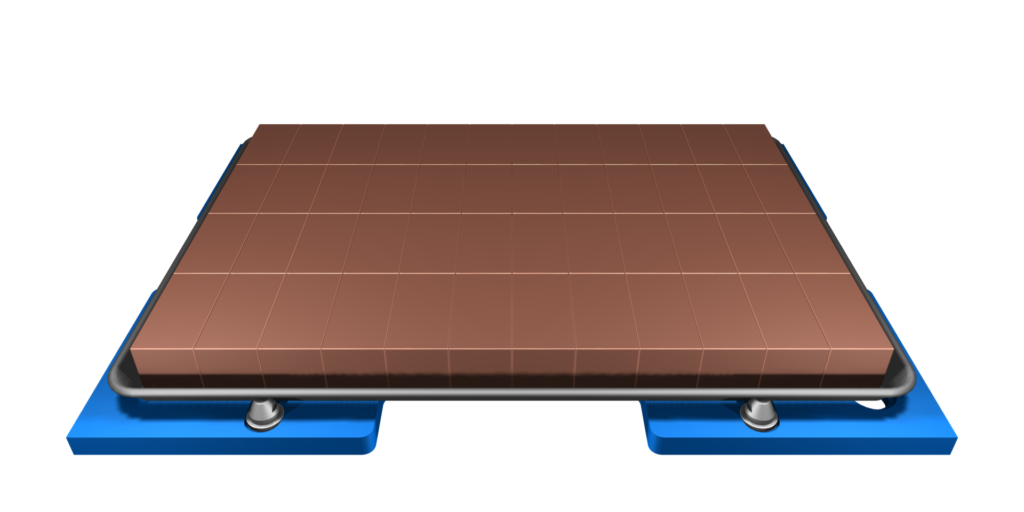

600 x 400

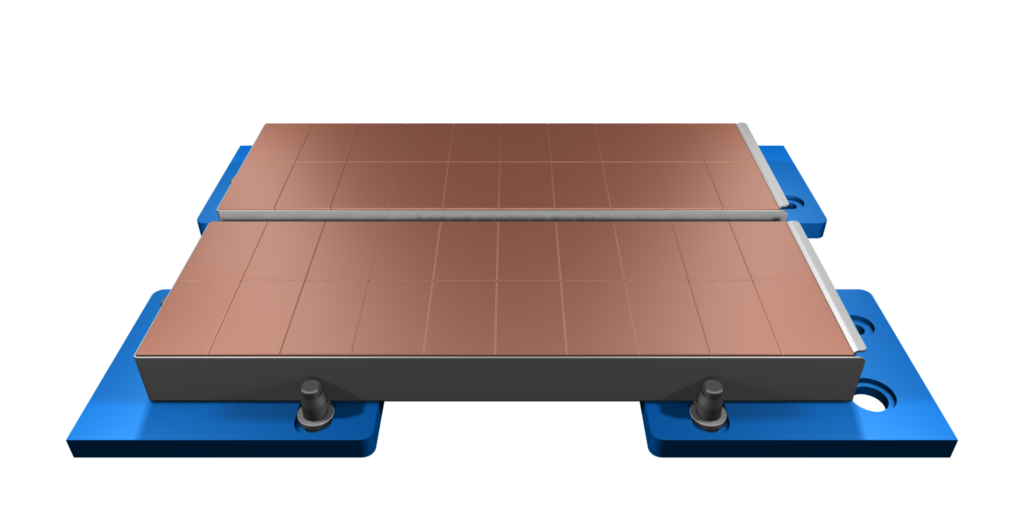

600 x 200

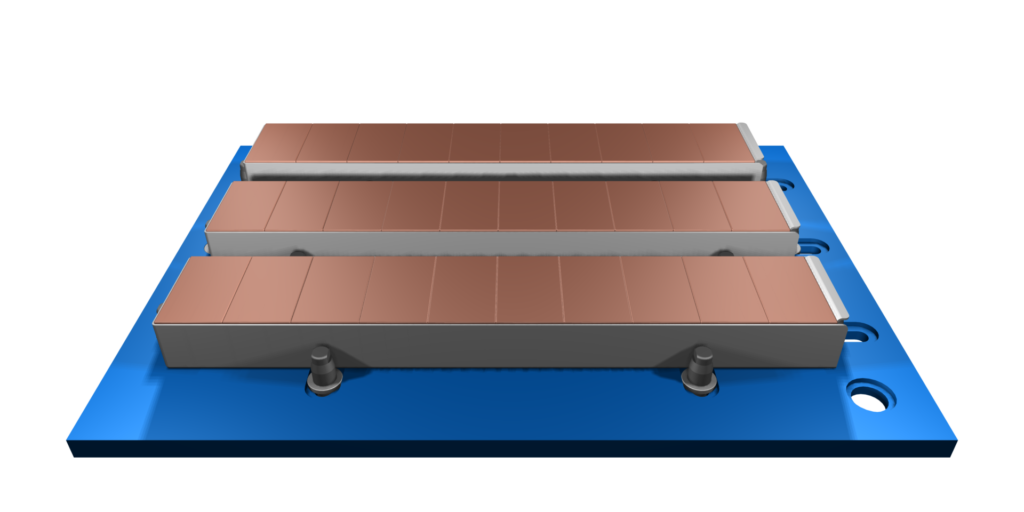

600 x 100

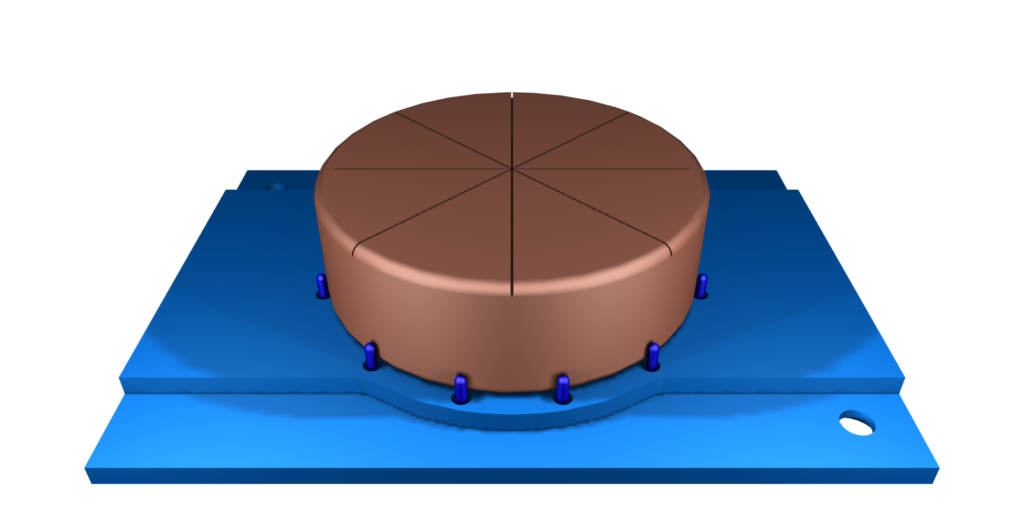

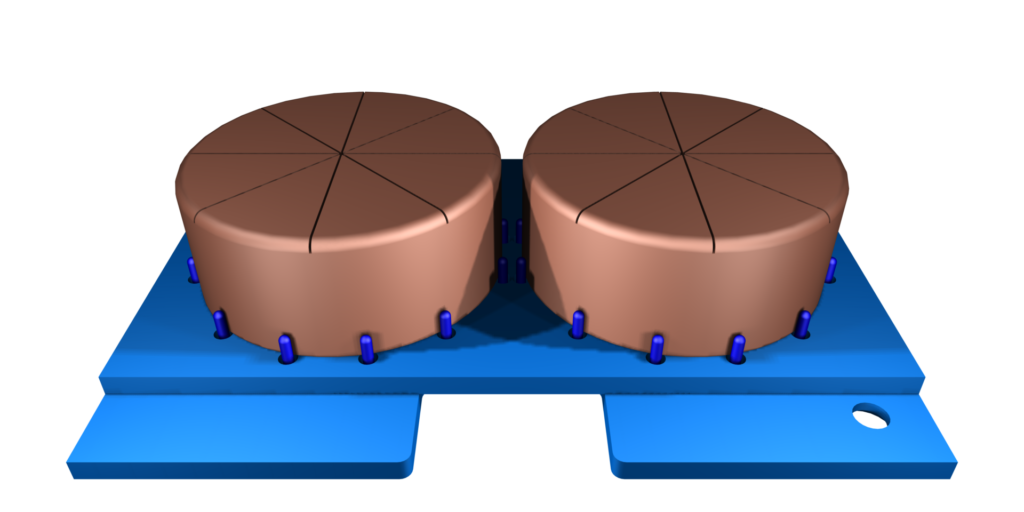

Round products up to Ø 360mm
Products on cutting plates up to 600 x 400

At a glance

Individual cutting angle can be realized
Low-noise, energy-saving concept
Simple and intuitive machine operation
Piece size and cutting speed adjustable individually via touch screen
Easy to navigate recipe management – an individual program can be stored for each product in order to use the optimum cutting parameters
Easy insertion of products into the cutting area
Highest safety standards due to completely enclosed machine housing & light grid system for monitoring the access opening
Modular basic machine concept configurable to customer requirements through extensions/additional configurations
Machine complies with current standards – also with regard to particularly energy-saving drives (with energy efficiency verification on request) – perfect for sustainable production

Length

2400 mm

Width

2000 mm

Height

1960 mm

Weight

1050 kg

Max. product size

600 x 400 mm

Max. product height

85 mm

with blade change: 120 mm

Electrical connection

400V 50 Hz 3 Ph +N +PE

Pneumatic connection

Compressed air 6bar

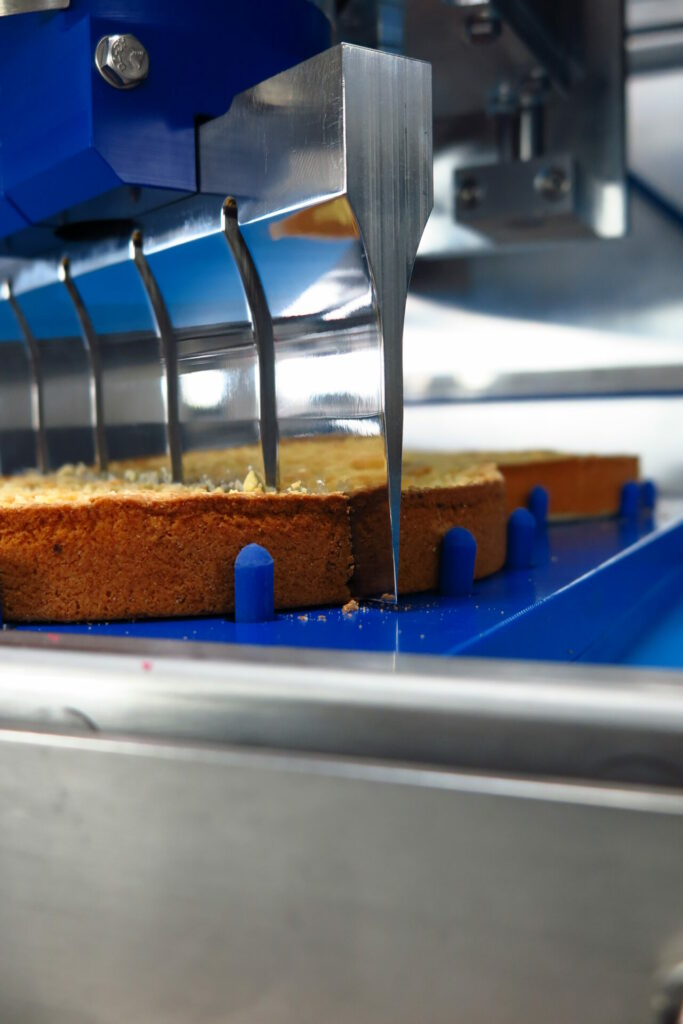

Ultrasonic blade

Hygienic design

Minimal adhesion of product residues to blade
Blade is therefore virtually self-cleaning
machine components are designed to be freely accessible and easy to clean
easy and quick machine cleaning of the soiling parts in the dishwasher
highest possible user-friendliness by reducing the number of machine surfaces/parts to be cleaned
optional automatic blade cleaning station (by 180 °C superheated steam system)

Products

Cakes/cakes in baking tray

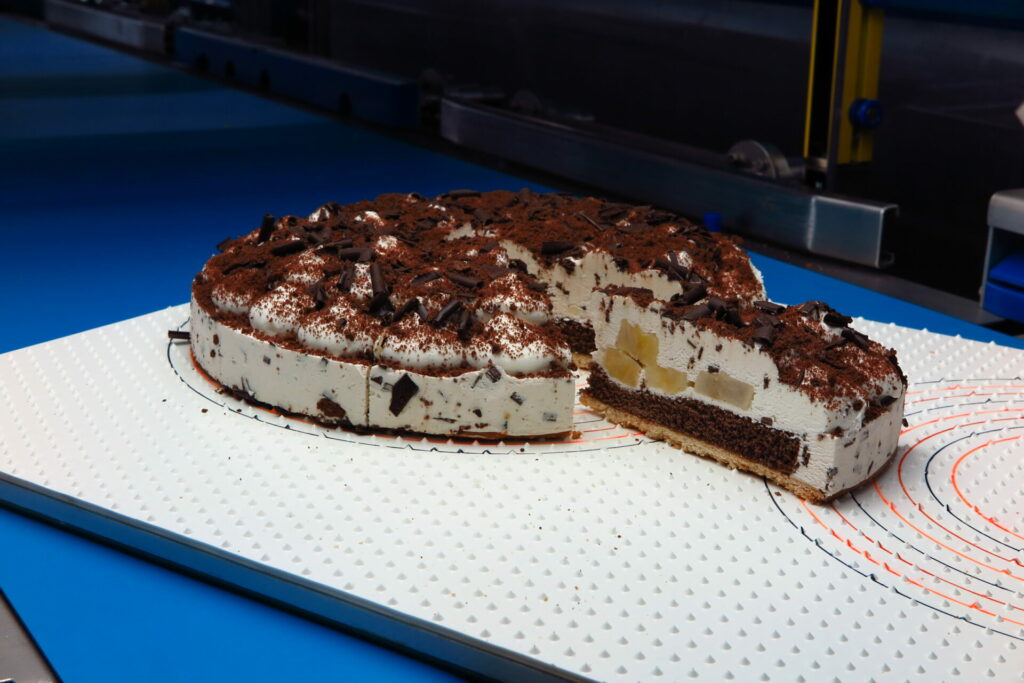

Cakes/cakes on cutting plate

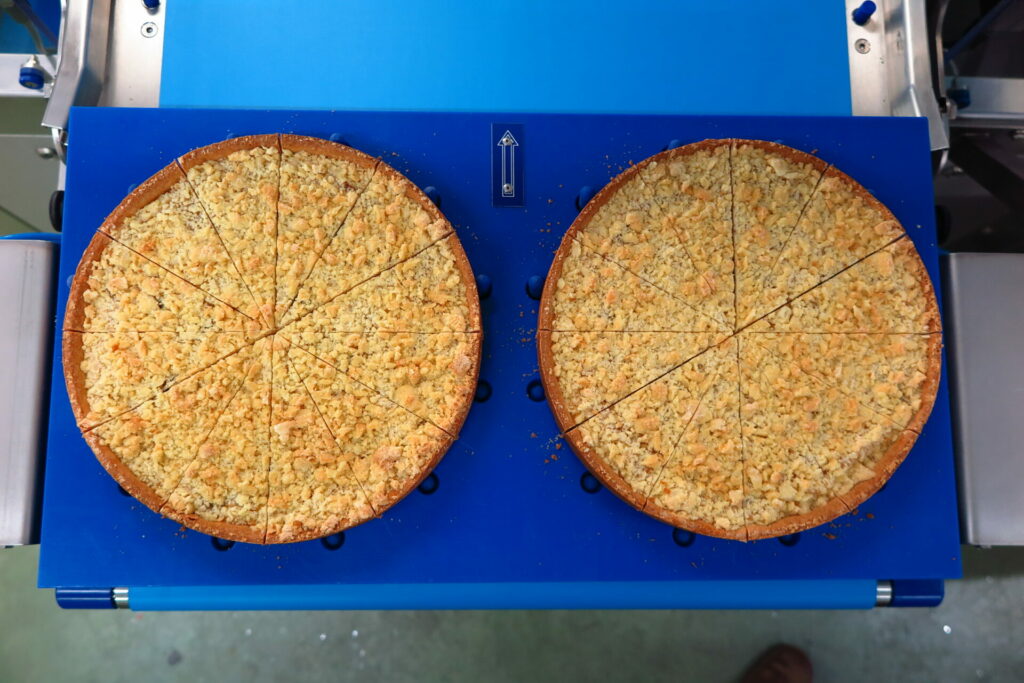

Nut cookies
Suitable for products with soft and solid ingredients, as well as multilayer products
up to 85 mm high
frozen or fresh
round as well as square products
